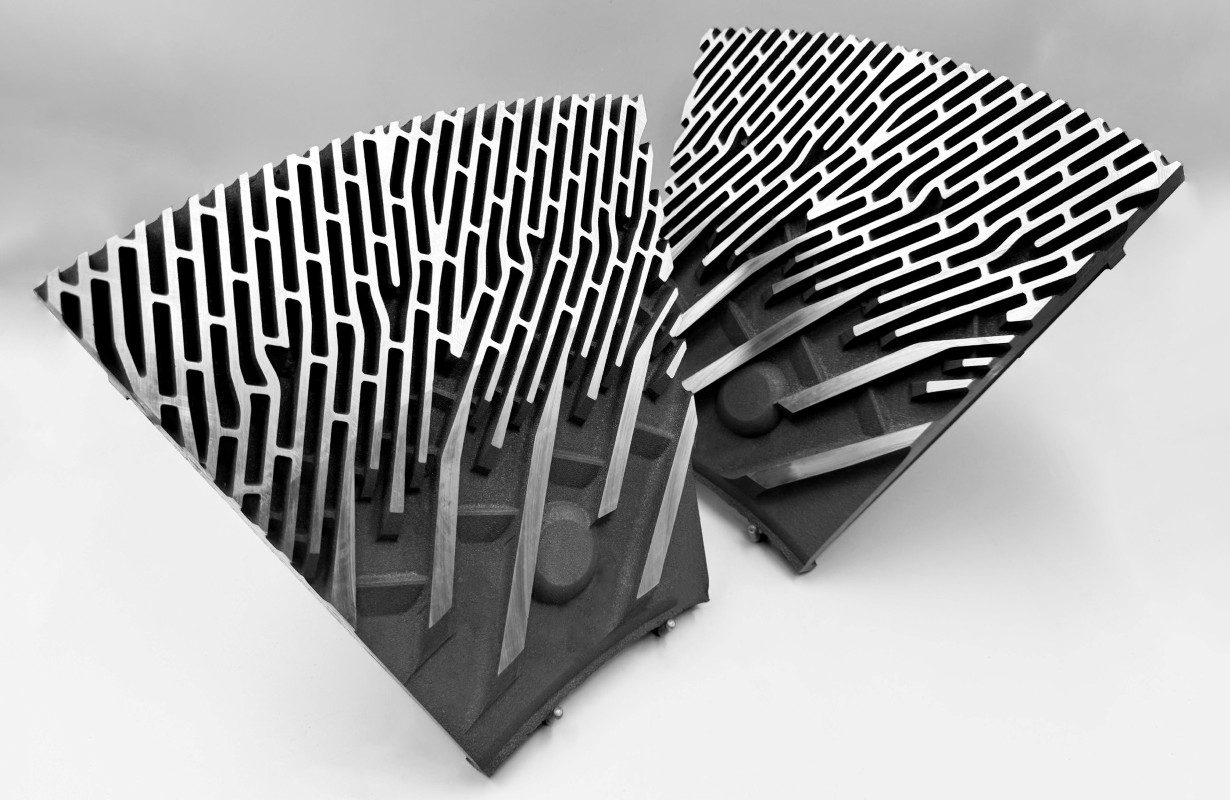

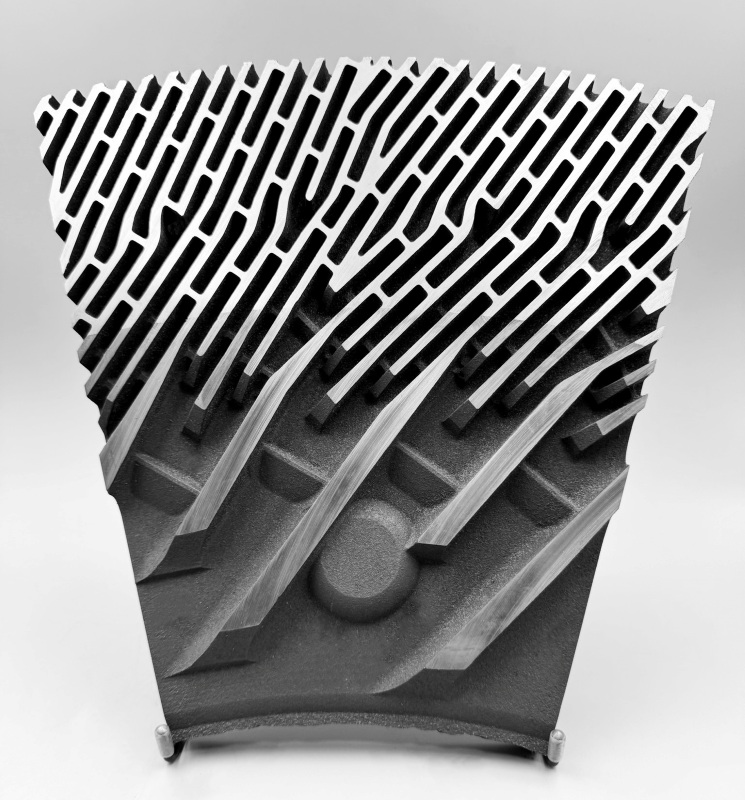

Pallmann 48" refiner - 48MK-3
| Model | 48MK-3 |
|---|---|
| Supported Machine | Pallmann refiner |
| Plate Diameter | 48" |
| Pattern Direction | RHS |
| Screw type | M16 |
| Screw holes | 2 |
| Segments per plate | 12 |
| Total No. of segments per set (Rotor and Stator) | 24 |
| Hardness | 62~63 HRC |
Introduction to
Pallmann refiner
Sunds offers a wide range of process technologies for panelboard production. Including refiner / defibraotor. In 1999, Sunds Defibrator merged into Valmet.
In 2009, Dieffenbacher acquired major shares of Shanghai Wood-based Panel Machinery Co Ltd. Popular refiners modelare M511, M300, M200.
PALLMANN is the leading manufacturer of size reduction machinery for the wood products industry. PALLMANN designs, manufactures and supplies tailor-made, individual or complete solutions for the processing of raw material for MDF, OSB and particleboard plants. At its headquarters in Zweibrücken, PALLMANN company operates the world‘s largest research and development center for size reduction technology as well as a training and service center. Numerous machines are available for the preparation of various raw materials including subsequent laboratory analysis on individual scale. Our global presence is ensured by our sales network for machinery as well as spare parts and after-sales service.
A brand new Pallmann refiner system PR (Pressurized refiner), example refiner models are: PR48, PR58, PR62(62 inch).
Valmet is a leading fiberboard system and paper machinery supplier. In 2013, Valmet received the panel board and Pulp and paper business from the demerge of Metso.
In the MDF / paper pulp industry, there are many refiner / defibrator running under the name of Metso and Valmet.
China Zhongfoma (FOMA, also called Sufoma formerly) is one of the leading supplier of complete production lines of MDF boards and second processing technology of wood-based panels / fibreboard.
The BM series refiner is a popular machine for the HDF/MDF production line and for the pulp and paper industry. Nowadays, they formed six series with segment size of 42 inch, 44 inch, 48 inch, 50 inch, 54 inch, and 58 inch, satisfying the annual capacity of MDF/HDF production from 50000cbm to 200000cbm.
ANDRITZ, a key player in the MDF and pulp and paper industry, manufacture it’s famous pressurized refining systems. The ANDRITZ single-disc refiners, equipped with the signature swing door design, enhance efficiency for plate changing process. Their comprehensive solution covers everything from debarking and chipping to screening, washing, and refining.
